1. Multiple Nozzles Liquid Filling Machine BRIEF INTRODUCTION
This Multiple Nozzles Liquid Filling Machine is composed of PLC, touch screen, photosensor, stainless steel frame etc.; It is designed based on piston filling theory; integrated design and advanced automatic control to ensure high accuracy liquid filling.
2.Multiple Nozzles Liquid Filling Machine features
Multiple Nozzles Liquid Filling Machine with High filling accuracy with widely filling range
Compact design save installation space
Special designed location control system to avoid photosensor count wrong
Special designed Lead screw to ensure rise and down steadily
Bottle clamp to lock bottle neck to ensure bottle no movement when filling
Automatic infeed liquid, no need manual intervention

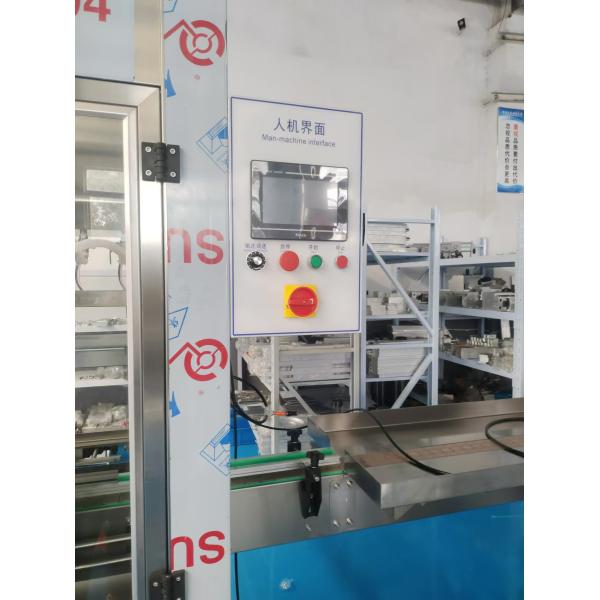

Touch screen operation system, easy to operate and modify parameters
Clean and repair convenient and maintenance costs is low
Optional Automatic self-clean function make clean very simple

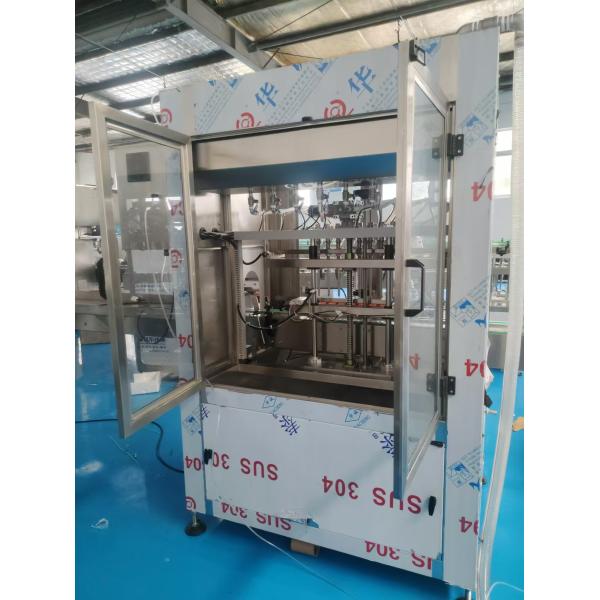

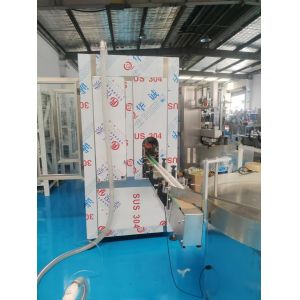

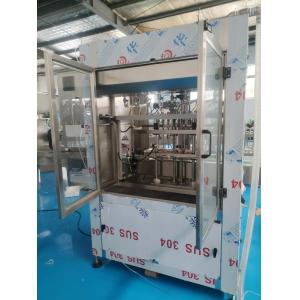

more images for Multiple Nozzles Liquid Filling Machine
Multiple Nozzles Liquid Filling Machine Parameters :
| material | 304 stainless steel |
| Pump Type | Piston PUMP |
| Filling Range | 30-1000ml |
| Filling Accuracy | +/- 1% |
| Nozzle Quantity | 8pcs |
| Nozzle Diameter | 16mm |
| capacity | 60bottles/min |
| power supply | AC380V;50Hz; 3Phases |
| Air source | 0.5-0.8Mpa |
| Conveyor Height | 900±50mm |
We provide the whole line : Multiple Nozzles Liquid Filling Machine + capping machine +labeling machine +turntable +shrink wrapping machine
welcome to send us inquiry about Multiple Nozzles Liquid Filling Machine.
